PVC-Jacketed Pre-Insulated Steel Pipe

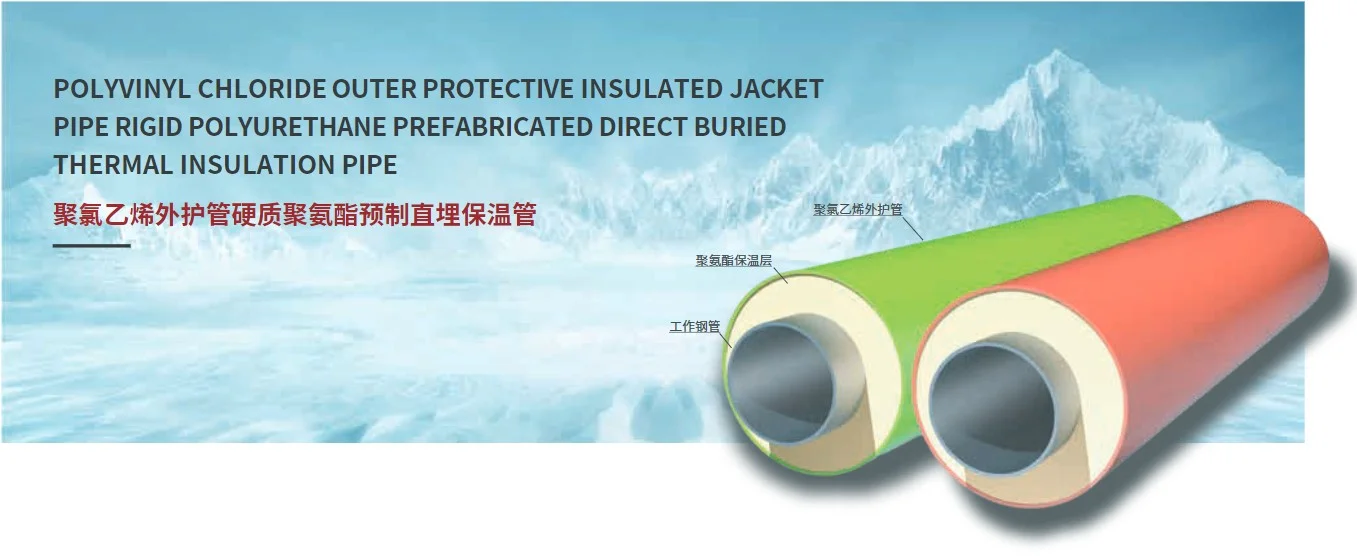

PVC-Jacketed Pre-Insulated Steel Pipe is a factory-prefabricated thermal insulation system consisting of a steel working pipe, rigid polyurethane (PU) foam insulation layer and PVC outer jacket. The PVC jacket protects the insulation and working pipe against moisture, water penetration, corrosion and mechanical damage.

The rigid PVC outer jacket provides good dimensional stability, mechanical strength and resistance to stress cracking, while the PU insulation layer provides effective thermal insulation. The integrated three-layer structure helps maintain a uniform insulation layer and reliable bonding between the components.

The system can be installed underground or above ground, providing a practical and cost-efficient solution for district heating, industrial thermal pipelines and other insulated piping systems.

Key Advantages

Uniform Insulation Structure — The rigid PVC jacket helps maintain stable geometry and consistent insulation thickness during foaming.

Excellent Thermal Insulation — Rigid PU foam effectively reduces heat loss and improves thermal efficiency.

High Resistance to Stress Cracking — PVC provides good resistance to stress cracking under outdoor and installation conditions.

Strong & Wear Resistant Outer Jacket — PVC offers good rigidity, mechanical strength and abrasion resistance.

Moisture & Corrosion Protection — The outer jacket helps protect the PU insulation and steel working pipe from water and moisture penetration.

Reliable Three-Layer Integration — The working pipe, PU insulation and PVC jacket form an integrated prefabricated structure with good interlayer bonding.

Buried & Above-Ground Installation — Suitable for both underground and exposed thermal pipeline systems.

Coastal & Humid Environment Suitability — The non-metallic PVC outer jacket provides an additional protective barrier in humid, rainy and salt-laden environments.

Convenient Construction — Factory-prefabricated insulation reduces on-site insulation work and simplifies installation.

Project-Specific Configuration — Pipe dimensions, insulation parameters and PVC jacket specifications can be customized.

Applications

District Heating · Central Heating Networks · Hot Water Transmission · Industrial Thermal Pipelines · Petrochemical Facilities · Chemical Plants · Power Plants · Municipal Heating Infrastructure · Outdoor Thermal Pipelines · Direct-Buried Heating Systems
